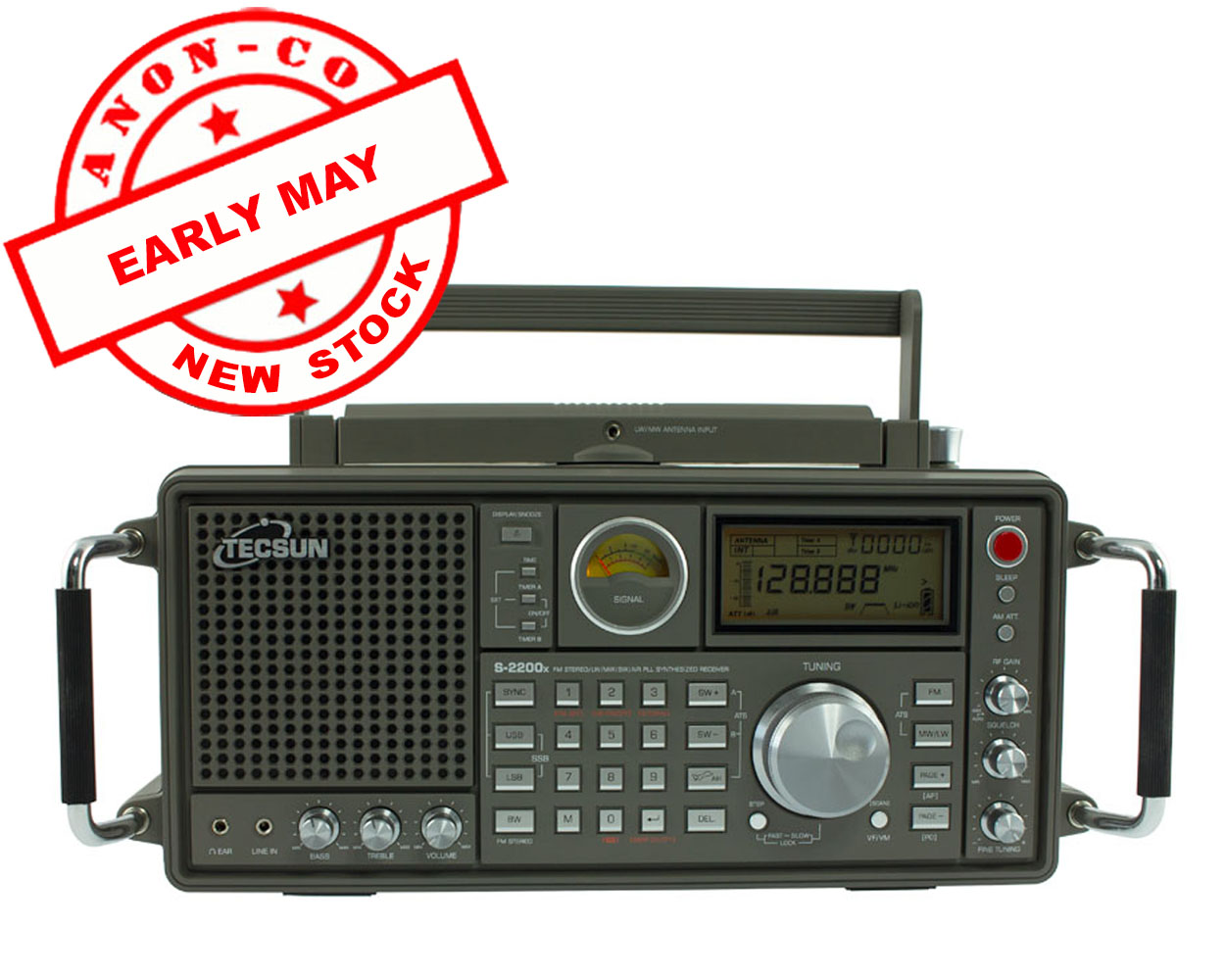

TECSUN S-2200x is the DSP successor of the successful dual conversion S-2000 radio receiver. It can be used for listening to FM, longwave (LW), medium wave (MW / AM), shortwave (SW) and VHF airband, and it is single sideband (SSB) capable.
S-2200x is equipped with an analog high-IF circuit and DSP triple conversion decoding technology. It has great performance in sensitivity, selectivity and combating interference of mirror stations (image rejection). Like other Tecsun models, it comes with a variety of "hidden features".
Tecsun's latest receiver comes fully packed, with Squelch Control, RF Gan Control, Antenna Signal Attenuation, 5 AM bandwidth settings, Synchronous Detection, external antenna sockets and the flexibility to adjust the signal capture sensitivity of the auto tuning and storage feature to the often changing reception conditions.
Package Contents
- Tecsun S-2200x radio
- 2 x Tecsun 18650 4.2V (3.7V nominal) 2600mAh battery
- 5V/2A charger

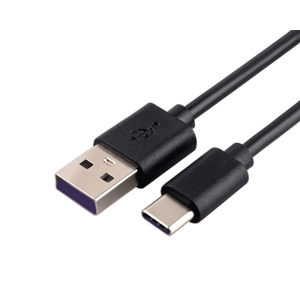

- USB charging cable
- 2 x BNC adapter plug
- Amateur radio world map
- English manual
Special Features
- Triple conversion AM IF
- 5 AM bandwidth settings
- Independent main and fine tuning knobs
- Power the device by 4 x D or 2 x 18650 batteries
- Squelch and RF Gain control
- SSB (USB / LSB) with 10Hz fine tuning steps
- Synchronous detection
- Adjustable ATS signal capture sensitivity
- 360° rotatable MW/LW antenna
- Antenna sockets for FM / AIR / SW / LW / MW (AM)
- Airband (VHF): For intercepting radio communication in aviation. By using the S-2200x airband function, you may intercept communication between pilots and air traffic control, but also other communication from commercial and general aviation, radio navigational aids and air traffic control.
Frequency Range
- FM: 64 – 108 MHz
- 64.0 – 108 MHz
- 76.0 – 108 MHz
- 87.0 – 108 MHz
- 87.5 – 108 MHz
Fast tuning steps of 0.1 MHz or 0.05 MHz (depends on FM range and MW steps setting). Slow/Fine tuning steps of 0.01 MHz.
- MW: 520 – 1710 kHz
- 520 – 1710 kHz (tuning steps 10 kHz)
- 522 – 1620 kHz (tuning steps of 9 kHz)
Fast tuning steps of 9 kHz or 10 kHz. Slow/Fine tuning steps of 1 kHz.
- LW: 50 – 522 kHz
- 100 – 519 kHz (when MW tuning is set to 10 kHz)
- 50 – 522 kHz (when MW tuning is set to 9 kHz)
Fast tuning steps of 9 kHz. Slow/Fine tuning steps of 1 kHz.
- SW: 1621 – 29999 kHz
- 1711 – 29999 kHz (when MW tuning is set to 10 kHz)
- 1621 – 29999 kHz (when MW tuning is set to 9 kHz)
Fast tuning steps of 5 kHz. Slow/Fine tuning steps of 1 kHz.
- AIR: 118 – 137 MHz
Tuning steps of 0.025 MHz. Fine tuning steps of 0.001 MHz.
Tuning Methods
- Direct frequency entry on keypad
- Auto scan: stops for 5 seconds on each found signal
- Manual jog dial tuning
Methods for Storing Stations (Memory)
- Manual storage: tune into stations manually and store them
- Auto scan an manual storage
- Auto Tuning Storage (ATS): automatic tuning and storing of signals
- Auto Paging (AP) ATS: for creating time-specific memories for MW and SW
Basic Features
- 9150 station memories
- Manual or auto memory browsing
- Auto Sorting Memory: Organises the memory and removes duplicate frequencies
- Antenna attenuation
- Squelch control knob
- RF gain control knob: auto or manual levels
- Synchronous detection
- LW/MW bandwidth selection: 1.0, 2.3, 3.5, 5.0 and 9.0 kHz
- SW/AIR bandwidth selection: 1.0. 2.3, 3.5, 5.0 and 6.0 kHz
- SSB bandwidth selection: 0.5, 1.2, 2.3, 3.0 and 4.0 kHz
- LCD backlight: always-on or auto-off after 5 seconds
- LCD displays signal strength and Signal-to-Noise ratio
- Clock display (24-hour format)
- Two independent alarm settings (Timer A and Timer B)
- Alarm clock (by radio)
- Sleep timer (1-120 minutes): auto turn off the radio after a pre-set time
- Alarm snooze feature
- Alarm Off timer (1-60 minutes): set the duration of the alarm
- Keylock
- 360° rotatable MW/LW antenna
- Telescopic antenna for FM, shortwave and airband (approx. 100cm / 39in)
- SW external antenna socket: 50Ω (BNC type), 500Ω (black/red spring terminals)
- FM/AIR external antenna socket: 50Ω (BNC type)
- MW/LW external antenna socket: φ 3.5mm (1/8in)
- Headphone socket: 32-300Ω, φ 3.5mm (1/8in)
- FM-stereo via headphones
- Independent main and fine tuning knobs
- Volume control knob
- Independent treble and bass control knobs
- S-meter
- Built-in speaker: 8Ω / 2W / φ 4in
- Audio input (line in) socket: use as an active speaker (φ 3.5mm, 1/8in)
- Audio output (L/R RCA) sockets: use as a radio tuner for your home audio system
- Battery selection switch: choose D-type (R20/UM1) or 18650 batteries
- DC 5V / 2A charging socket (USB-C)
Power (batteries)
- 6V: 4 x D-type batteries (R20/UM1). Suitable for alkaline, Ni-MH and lithium batteries, but the total voltage must be 6V or below
or
- 8.4V: 2 x 4.2V (3.7V nominal) 18650 lithium (Li-ion) batteries
Charging (18650 batteries)
- DC 5V / 2A, USB-C socket
Unit Size & Weight
- Approx. 372 (L) x 183 (H) x 153 (D) mm (approx. 15 x 7 x 6 in)
- Approx. 2.43 kg (excl. batteries)
Specifications
- Sensitivity:
- FM (S / N = 30dB) < 3μV
- AIR (S / N = 10dB) < 5μV
- MW (S / N = 26dB) < 1mV/m
- LW (S / N = 26dB) < 3mV/m
- SW (S / N = 26dB) < 20μV
- SSB (S / N = 10dB) < 1μV
- Selectivity:
- LW > 40dB
- MW > 40dB
- SW > 40dB
- FM > 65dB
- AIR > 60dB
- S/N ratio:
- LW > 40dB
- MW > 40dB
- SW > 45dB
- FM > 60dB
- AIR > 60dB
- SYNC lock range: +/- 1kHz
- AM IF Frequency:
- 1st IF: 55.845MHz
- 2nd IF: 10.7MHz
- 3rd IF (DSP): 45kHz
- FM IF Frequency: 128kHz
- FM Stereo Crosstalk: 35dB
- Max. Output Power: 1500mW
