TECSUN H-501x can receive FM, Longwave (LW), Medium Wave (MW) and Shortwave (SW) frequency bands and is Single Sideband (SSB) capable.
This radio receiver is equipped with an analog High-IF circuit and DSP triple conversion decoding technology. It has great performance in sensitivity, selectivity and combating interference of mirror stations (image rejection). Like other Tecsun models, it comes with a variety of "hidden features".
The full-range dual speaker design, Class AB Amplifier circuit and independent treble and bass control knobs make listening to radio stations and the added audio playback features (from a microSD card or Bluetooth pairing) even more enjoyable.
Package Contents
- Tecsun H-501x
- Tecsun EP-20 stereo earphones
- 32GB microSD card
- Hard cover toolbox-like case
- Protective black sleeve for the radio
- 3.5mm (1/8 inch) audio cable
- Charging cable (micro-USB type-B to standard USB type-A)
- USB wall charger
- Radio amateur world map
- English manual
- 2 x Tecsun 18650 2600mAh Li-ion batteries
Please note: A zippered leatherette case can be included as an add-on, but it does not fit inside the toolbox-like case.
Special Features
- Triple conversion AM IF
- Synchronous detection & SSB
- SSB (USB / LSB) fine tuning steps at 10 Hz
- Antenna socket (3.5mm) for FM
- Antenna socket (3.5mm) for AM (LW, MW and SW)
- Audio player: music playback from microSD
- AM bandwidth settings:
- LW/MW: 2.3, 3.5, 5.0 and 9.0kHz
- SW: 2.3, 3.5, 5.0 and 6.0kHz
- SSB: 0.5, 1.2, 2.3, 3.0 and 4.0kHz
Frequency Range
- FM: 64 – 108 MHz
- 64.0 – 108 MHz
- 76.0 – 108 MHz
- 87.0 – 108 MHz
- 87.5 – 108 MHz
Tuning steps of 50 kHz or 100 kHz (depends on MW steps setting). Fine tuning steps of 10 kHz.
- MW: 520 - 1710 kHz
- 520 - 1710 kHz (tuning steps 10 kHz)
- 522 - 1620 kHz (tuning steps of 9 kHz)
Tuning steps of 9 kHz or 10 kHz. Fine tuning steps of 1 kHz.
- LW: 50 kHz to 522 kHz
- 100 – 519 kHz (when MW tuning is set to 10 kHz)
- 50 – 522 kHz (when MW tuning is set to 9 kHz)
Tuning steps of 9 kHz. Fine tuning steps of 1 kHz.
- SW: 1621 kHz to 29999 kHz
- 1711 – 29999 kHz (when MW tuning is set to 10 kHz)
- 1621 – 29999 kHz (when MW tuning is set to 9 kHz)
Tuning steps of 5 kHz. Fine tuning steps of 1 kHz.
Tuning Methods
- Direct keypad entry
- Auto scan
- Manual dial tuning
Methods for Storing Stations (Memory)
- Manually: tune into a station using the knobs and then store them
- Storing stations during auto-scan
- Auto Tuning Storage (ATS): automatically tune and store stations
- Recall stations by browsing the memory manually or by auto-scan
Audio Player Features
- Audio playback from microSD card (max. 128GB)
- Bluetooth receiver
- Supported audio formats: 16bit / 44.1kHz, FLAC / WAV / APE / WMA and MP3.
- Basic playback controls
- Repeat single track
- Playback position memory
- Display does not show album/track name
- Computer speaker mode
Basic Features
- Signal strength and S/N ratio indication
- Clock & Alarm (24-hour format)
- 3150 stations storage locations, divided over 25 memory pages
- FM stereo / mono selection

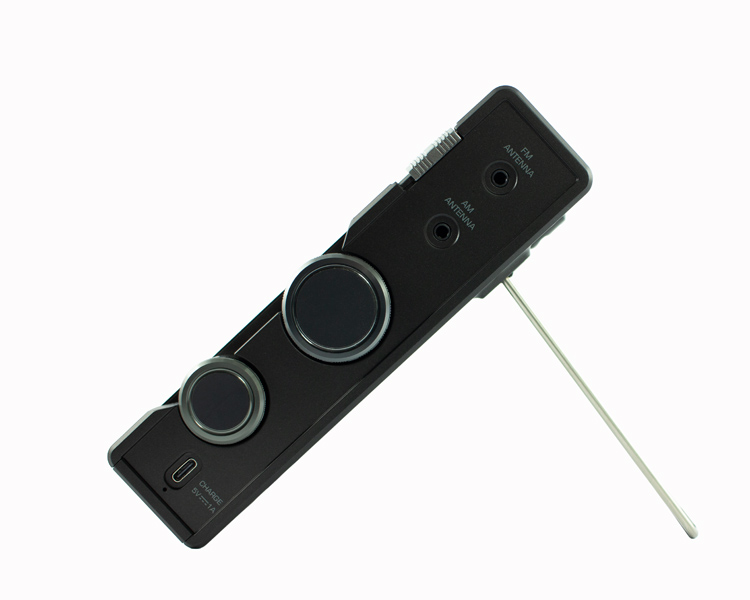

- Dedicated tuning and fine-tuning knobs
- Alarm by radio or audio player
- Snooze function – 5 minutes
- Sleep timer from 1 - 120 minutes
- Class AB type Audio Power Amplifiers & ultra -dynamic full range speaker, with excellent sound quality

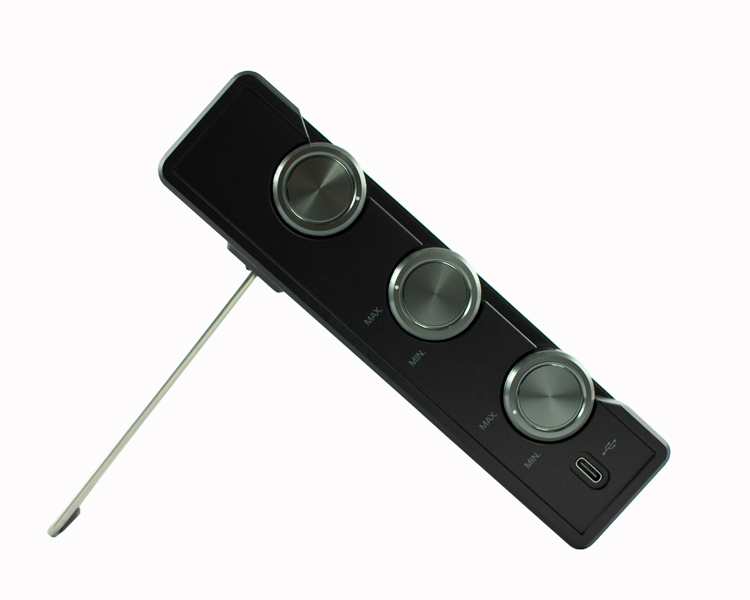

- Dedicated Bass and Treble control knobs
- LCD backlight (always-on or auto-off)
- Keylock function
- Rear metal tilt bail
- Local / Norm / DX antenna gain switch: adjust sensitivity
- Antenna socket (3.5mm) for FM
- Antenna socket (3.5mm) for AM (LW / MW / SW)
- Line-out jack (3.5mm)
- Line-in jack (3.5mm)
- Headphone jack (3.5 mm; 1/8 inch; < 300Ω)
- Digital audio input socket (micro-USB type-B)
- Speakers (6Ω, 3W x 2)
- Battery compartment holds two batteries.
- Battery selection switch to change between batteries.
Power / Charging
- Battery power: 1 x 18650 lithium (Li-ion) battery
- DC power (for FM only): 5V
- Charging/Power: DC 5V/1A
Unit Size
- 277 x 167 x 44 mm (W x H x D)
Specifications
- Sensitivity:
- FM (S / N = 30dB) < 3uV
- MW (S / N = 26dB) < 1mV/m
- LW (S / N = 26dB) < 3mV/m
- SW (S / N = 26dB) < 20uV
- SSB (S / N = 10dB) < 1uV
- Selectivity:
- FM > 65dB
- MW / LW > 40dB
- SW > 40dB
- S/N ratio:
- FM > 60dB
- MW / LW > 40dB
- SW > 45dB
- SYNC lock range: +/- 1kHz
- AM IF Frequency:
- 1st IF: 55.845MHz
- 2nd IF: 10.7MHz
- 3rd IF (DSP): 45kHz
- FM IF Frequency: 128kHz
- FM Stereo Crosstalk: 33dB
- Output Power: ≥ 500mW x 2 (at 10% harmonic distortion)
